How To Edit Navisworks Clash Report Export Image Size

4 July 2016 · Luke Johnson

Have you ever wondered how to increase the image resolution exported by Navisworks during a Clash Report?

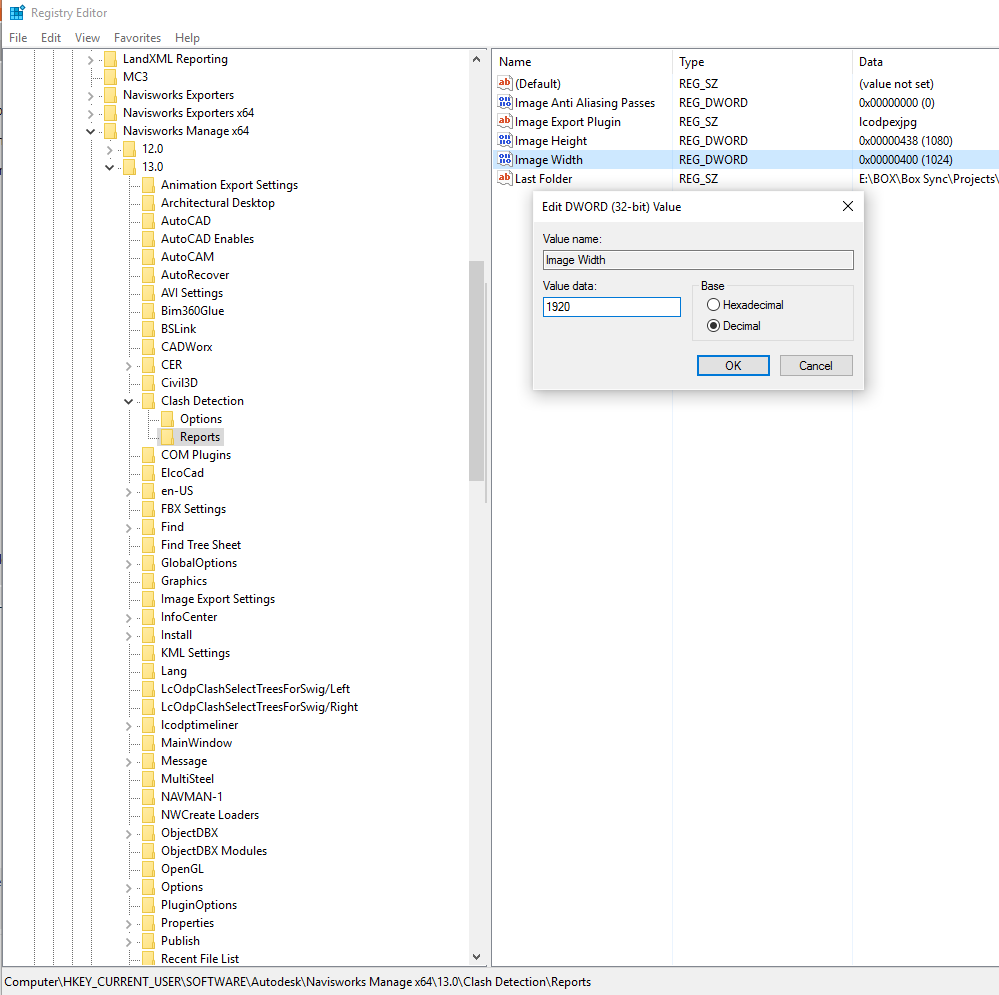

You can set this in the Registry, look in bottom left corner of image for the location of this key:

Also note, Navisworks 2016 is 13.0 in the Registry.

More Navis tips:
What Revit Wants: Thirteen Navisworks Tips to Boost your Productivity for 2014

Discussion

1 archived comments. New comments are not enabled.

Luke Johnson 2020-11-23 13:00:23

Similar information found on Autodesk site here https://knowledge.autodesk.com/support/navisworks-products/troubleshooting/caas/sfdcarticles/sfdcarticles/How-to-control-the-size-of-the-images-from-a-Clash-Report-in-Navisworks.html
