Wall Opening Area Add-in (by Autodesk Labs)

What does it do?
Gives you more granular control over the calculation of wall and opening area

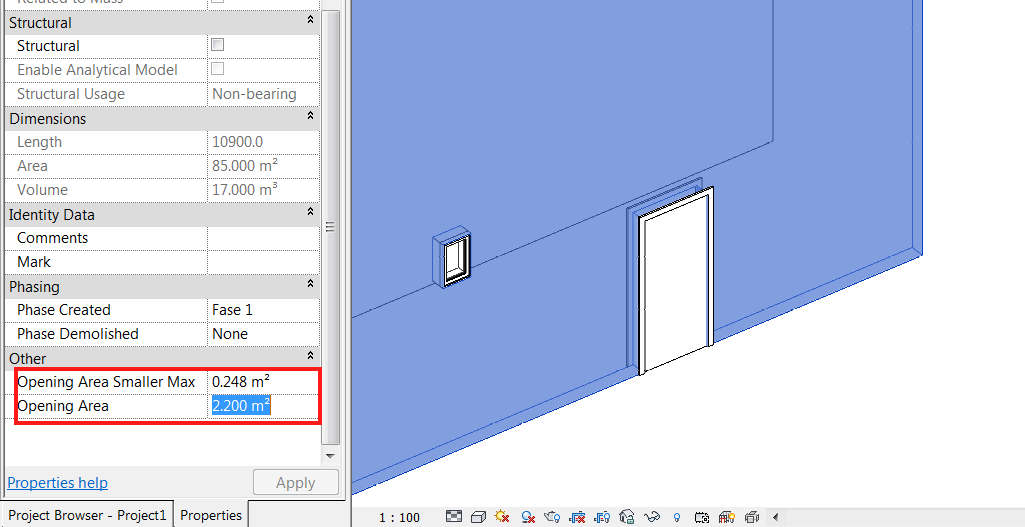

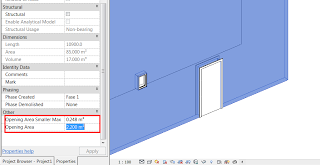

The results you get are divided according to an area value you can set. All the openings below that Maximum value are stored as Opening Area Smaller Max, and the total openings area are added to the Opening Area Parameter. Now, you can schedule this parameters and get the Gross area of the wall by playing with calculated parameters.
Heads-up and more info from here

Where can you get it?
From here

Discussion

2 archived comments. New comments are not enabled.

Scott Sheppard 2013-09-09 13:45:35

Thanks for helping to spread the word.

mohamed ibrahim 2020-12-01 08:03:03

i am working as a coordinator and i had a task to make openings for services above ceiling level for elec. and mech. now i am asked to calculate the total area for these opening which was drawn as edit profile not as a wall openings is there any way to calculate them ?
