The difference between an Active Dimension and a Selected Label in the Revit Family Editor

13 November 2012 · Luke Johnson

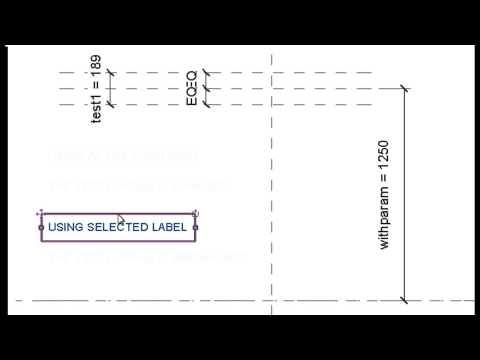

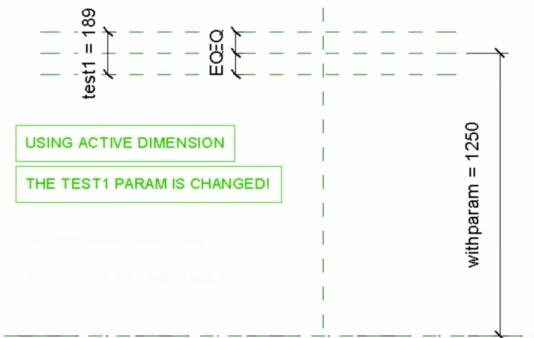

There are at least two distinct ways to move an item via dimension edit in the Family Editor, but they can have very different results. See video:
Open embedded content: www.youtube.com

My video is directly derivative of one from Steve Stafford last week. Steve demonstrated some interesting behaviour along basically the same lines at:
Revit OpEd: Two Minutes with Constraint Quirkiness

Discussion

1 archived comments. New comments are not enabled.

Barrie Sharp 2013-01-09 14:03:37

Had this same issue. Check out the anchor icon on the eq dimension. Highlight the outer RP's and drag the anchor to the centre RP for expected results.
