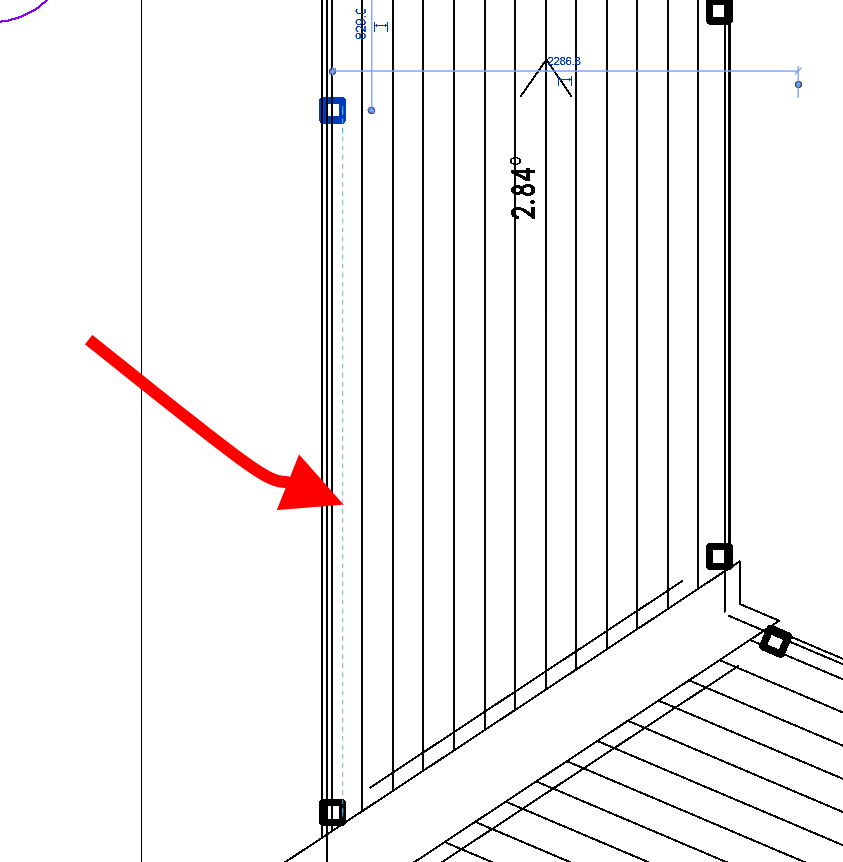

Revit Master Popquiz 5 – what does this line mean?

19 May 2011 · Luke Johnson

And what possible ways are there to modify it in plan?

Don’t be scared – please comment with your guesses.

EDIT – answer provided here:
What Revit Wants: Popquiz 5 – answer

Discussion

7 archived comments. New comments are not enabled.

Steve 2011-05-19 03:25:44

I can't even tell what I'm looking at, sorry...dense!

Luke Johnson 2011-05-19 03:49:25

If you click on the image you will see the dashed line at the end of the arrow...

Steve 2011-05-19 07:44:55

I can see the line fine, I just don't know what it is referencing? What are we looking at in the image? A refrigerator, satellite, dog house, railing, small dog :) ?

Revit Solo 2011-05-19 08:24:32

Its the alignment line that shows up when your draging elements to a new position.

Anonymous 2011-05-19 09:04:13

beam system line?

Neboysha NOVKOVICH 2011-05-20 19:20:59

Its the alignment line that shows up when your draging elements to a new position.
x2
))

Anonymous 2011-11-30 14:05:47

alignment constraint
