Piping for Revit MEP Dummies (like Me)

1. Add two components with similar system connections (like Hydronic Supply)
2. Select one of the components, and click the Piping button
3. Ok to dialog, Edit System, use Add to add the other component.  Finish.
4. Select one of the components, use the Generate Layout tool.  Click Edit Layout if you want to drag the lines around.
5. Start adjust heights and paths of piping.

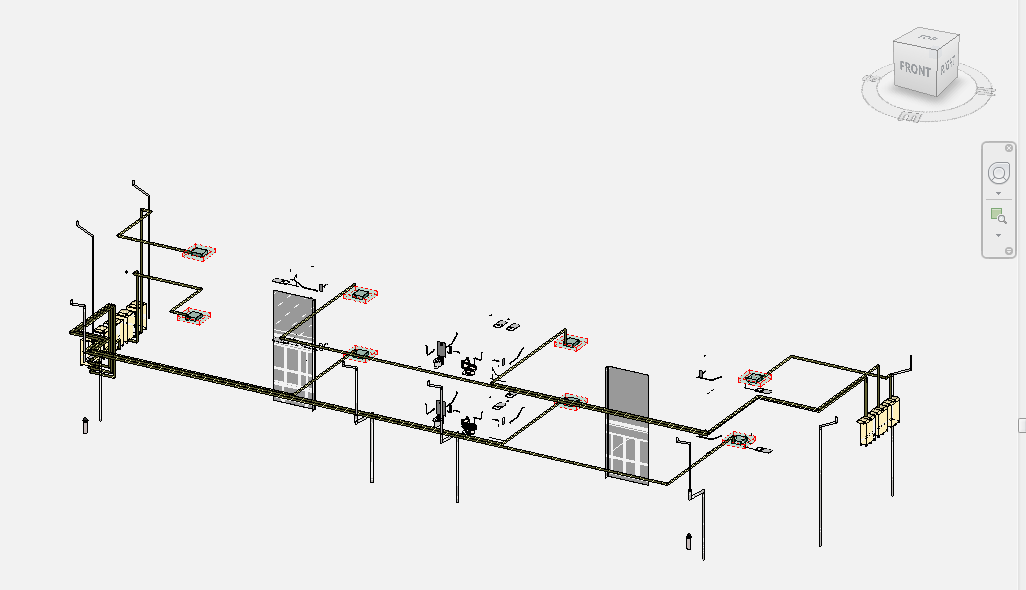

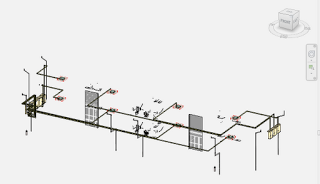

Don’t forget, you can set the View Discipline to Mechanical to get some in-built filtering to show something like this:

Quick video from Wikihelp:

(embedded JWPlayer)

Read more at:
Pipe – WikiHelp
